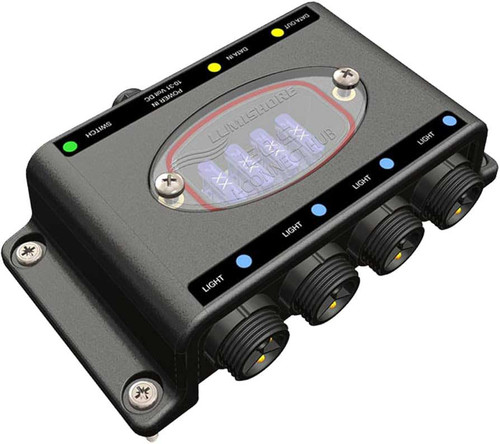

Lumishore EOS i-Connect Hub for EOS SMX154 & EOS TIX404

Dedicated junction box hub engineered for seamless integration with Lumishore EOS underwater lights, including SMX154, TIX404, SMX153, and TIX403 models . Features plug-and-play connections for simplified installation and supports up to 4 EOS fixtures per hub . Compatible with EOS Mini-i Color Change controller and Lumi-Link MFD integration for intuitive chartplotter control . Expandable system design allows daisy-chaining up to 4 i-Connect Hubs together, supporting a total of 16 underwater lights . Ideal for multi-light configurations on larger vessels requiring professional-grade underwater lighting networks.

Product Highlights:

• Full EOS Color Change
• Lumi-Link Compatible
• Specially Designed for Ease of Installation
• Plug-and-Play Connections
• Built in Switching Power Relay
• Replaceable Blade Fuse For Each Light

Technical Specs:

• 10-31v DC
• 20A Max (5A per Zone)
• Max 4 lights per Hub
• Max 4 Hubs (16 Lights Max)

Wiring Example:

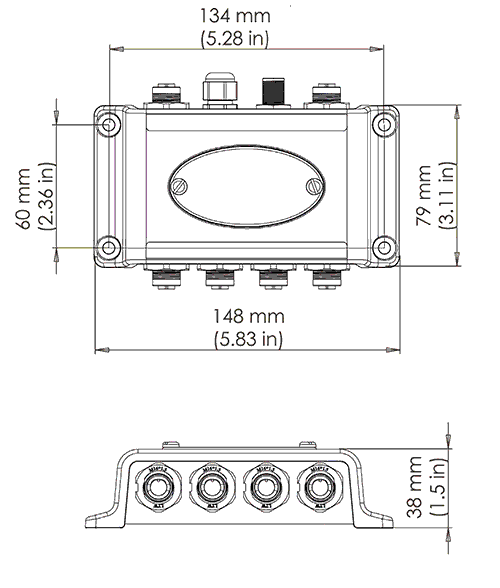

i-Connect Hub Dimensions:

What's in the Box:
