Shadow-Caster Single Zone RGBW Controller

The Shadow-Caster Single Zone Lighting Controller is a cost-effective, marine-grade RGBW LED controller designed for simple operation using a standard push-button switch. Easily adjust color and brightness while enjoying seamless synchronization with other Shadow-NET devices for unified lighting control across your boat. Perfect for coordinating underwater and interior RGBW lighting, this durable controller delivers reliable performance and versatile customization on the water.

Product Highlights:

• Shadow-NET enabled for expansion and use with other Shadow-Caster products
• Backlit SC logo indicates brightness and color or flashes red if fault detected
• Supports color rotate, single and multi-color fade
• Auto-detect for white channel
• Integrated overcurrent protection
• Operate from an off/on/momentary switch or a single momentary push button
• Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on your boat
• Proudly engineered and manufactured in Florida, USA

Technical Specs:

• Press switch to start/stop color rotate. Click to next color
• Press and hold for brightness
• Toggle ON/OFF input to switch modes
• 10A max current draw
• IP67 housing and connector
• 12V/24V operation compatible
• Dimensions 3.5” x 2.9” x 1.2”

SCM-SZ-RGB Video:

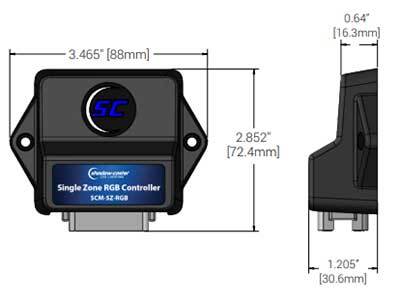

SCM-SZ-RGB Dimensions:

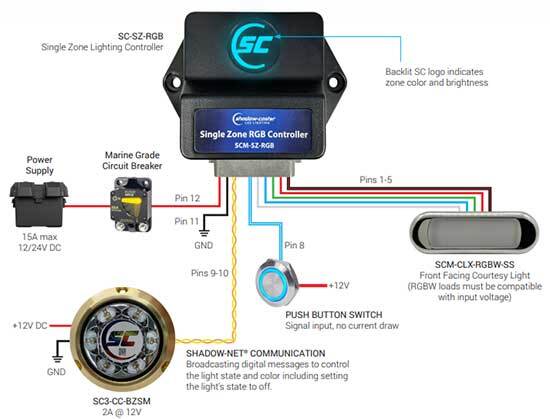

SCM-SZ-RGB Wiring Diagram:

What's in the Box:

• (1) SCM-SZ-RGB
