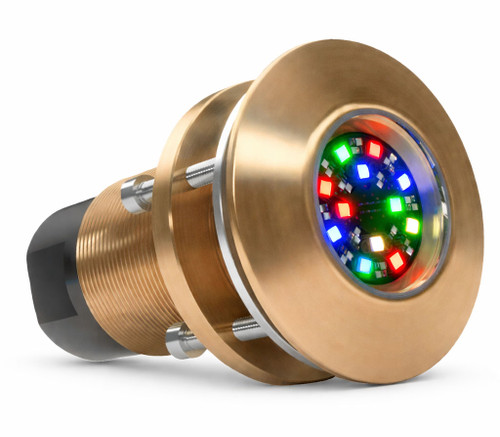

Lumishore EOS TIX804 RGBW Underwater Led Light

Experience exceptional marine lighting with the Lumishore TIX804 EOS full-color underwater light. Delivering a verified 12,000 fixture lumens with an ultra-wide 110° beam angle, this interchangeable thru-hull light creates a stunning halo-effect around your boat. The EOS system features full RGBW color control with customizable colors, modes, and special effects accessible directly from your MFD or optional Lumishore Display. The TIX design includes an internal LED array and integrated driver for simplified installation and convenient interior hull servicing. Constructed from marine-grade aluminum bronze, suitable for transom, side, and bottom mounting on 12V/24V DC systems.

Product Highlights:

• RGBW Full Color Changing
• 12,000 Lumens
• 3-Year Warranty

Technical Specs:

• Hole Cutout 3.37"
• 12-24v DC
• 106W / 8.8 Amps @ 12v DC
• IP68 Waterproof Rating
• 110° Wide Beam Angle
• Marine Aluminum Bronze
• Control the EOS TIX804 with the the EOS i-Connect Hub

TIX804 Dimensions:

TIX804 Wiring Example:

What's in the Box:
