A105 LED Recessed Down Light 4"

Featuring 2-wire system for power & dimming, the A105 LED fixture easily replaces existing halogen downlights negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation.

Product Highlights:

• Very thin bezel design
• 2-Wire Power and Dimming
• Spring Mounted. No screws required
• Dual Color models are controlled with a single momentary switch (uses 3rd wire)
• Made in USA
• 5-Year Warranty

Technical Specs:

• Outer Diameter: 4.13”
• Cutout Hole: 3.39”
• Recessed Depth: 1.50”
• 95º Beam Angle
• 10-40V DC
• 4.7W Consumption
• 216 Lumens
• IP65 Waterproof
• Dimmable using ILIM80130 or ILIM80140 dimmer

Product Dimensions:

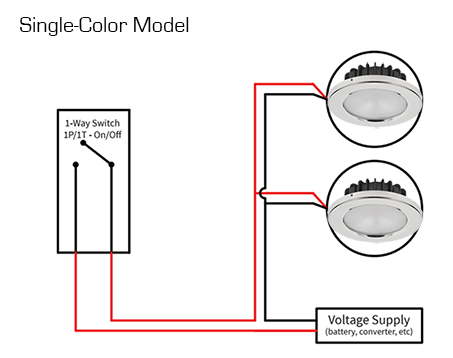

A105 Wiring Diagram:

What's in the Box:

• (1) A105 Fixture
