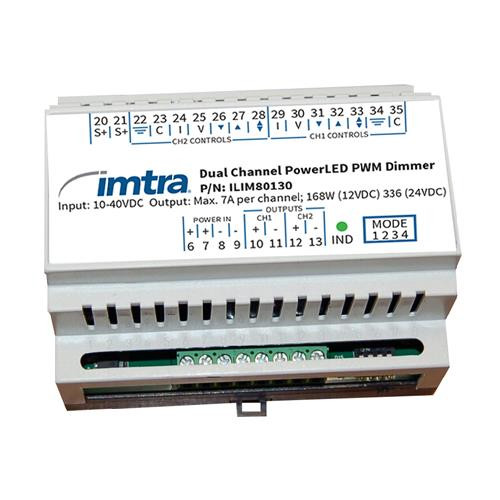

PowerLED Dimming Control Module
LED Dimmer 10-40VDC, 7A (14A 2-Channel), IP40
This 1 or 2-Channel Dimmer Module provides dimming for “PWM Enabled” 2-wire Imtra PowerLED Downlights and supports a broad range of lighting configurations and control methods.
The ILIM80130 can control a large number of PowerLED Downlights on each channel, only limited by the total current being drawn. It supports PWM current switching of up to 7A per channel (168W/12VDC and 336W/24VDC combined). It also supports Imtra 3-wire Bi-color Downlights.
Control interfaces are provided to support:
Single and dual momentary push buttons
0-10v analog control (external voltage or potentiometer)
4-20ma analog control
The two channels may be operated as totally independent lighting zones or “Paired” together so that both channels are controlled in unison.
