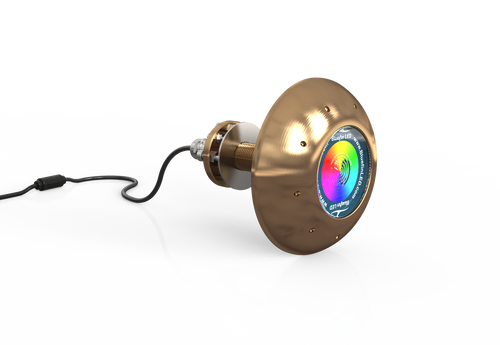

Manta Ray MR

Overview

• Thru-hull. (Available mid February 2018)

• Formidable performance with the added security of a thru-hull stem fitting.

• A radical departure from conventional sealing methods the Manta Ray has an unique rear cassettedesign with multiple sealing system.

• Machined from Billet AB2 Marine grade Bronze.

• Suitable for Transom mounting on all hull types.

• Built in driver technology with active thermal rollback.

Specifications

• Suitable transom mounting
• Thru-Hull, requires 25mm/1" cable entry hole
• Recommended for boats upto 30m/105+ft
• Max Lamp Lumens 16000 / Fixture Lumens 13000
• Typical LED life expectancy 50,000 + hours
• Voltage 24v, Power Draw 5.1A
• For Mains Voltage systems purchase our 110/240V PSU
• Over voltage,current,reverse polarity,active thermal protection
• Hydro Block and Nano Coating Technology
• Fixture profile 32mm,1.26"
• Fixture diameter 140mm,5.5"
• Fixture Length 208.5mm,8.21"
• Lens: optical grade 8mm Boroscilicate glass,65 degree beam angle
• Body AB2 Bronze throughout
• Weight 2.7kg/5.94lbs
• 2 years warranty
• Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls
