Offshore Series LED JBOX Light

Advanced LED J-Box Fixtures with Dual Circuit Protection & Thermal Management at Apex Lighting. Experience unmatched reliability with our innovative Junction Box (JBOX) LED fixtures, engineered with cutting-edge Electronic Thermal Management technology that ensures optimal performance and longevity. Our exclusive Redundant Circuit Design provides fail-safe operation, maintaining illumination even if partial circuit failure occurs.

Product Highlights:

• LED light and J-Box all in one unit
• IP68 Fully Waterproof
• Equivalent to 75W incandescent light
• Thermal vent with Gore® membrane
• Certifications: CE, ROHS, TR 62778, UL 1598A

Technical Specs:

• 180° Beam Angle
• Die-Cast 6061 Aluminum Housing
• SS or Aluminum adjustable angle brackets
• Power: 10 Watts, 0.09A@115VAC / 0.04A@230VAC
• Operating Voltage: 90-264VAC
• Operating Temperature: -40°C to 60°C
• 1000 Lumens
• 5000K Color Temperature

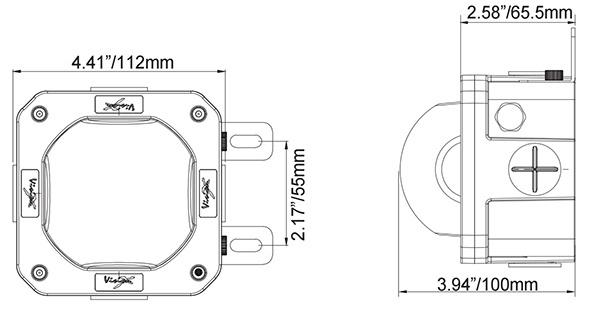

LED JBOX Dimensions:

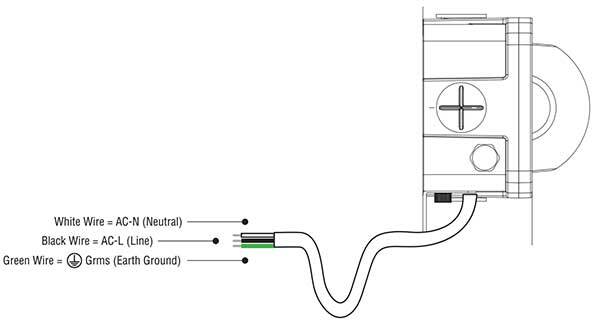

LED JBOX Wiring Diagram:

What's in the Box:

• (1) JBOX LED Light
