Lumishore ECLIPSE Command Center

Discover the Lumishore ECLIPSE Command Center: the world's first ultra-compact boat lighting controller with 3 built-in zones (expandable to 6), Wi-Fi/app control, MFD integration, and features like dimming, color selection, sound-to-light, and strobe. Plug-and-play IP67 waterproof setup for effortless marine lighting management.

Product Highlights:

• Seamless integration of your Lumishore ECLIPSE lights via your MFD
• 3 built-in zones control lights; expandable to 6 with modules
• Built-in Wi-Fi allows for direct smart device connectivity
• 3-Year Warranty

Technical Specs:

• 12vDC Only
• 30A Max (10A per Zone)
• Control Methods: WiFi, MFD, Physical Switch
• Control Dimming, Color Selection, Strobe, Sound to Light
• IP67 Waterproof

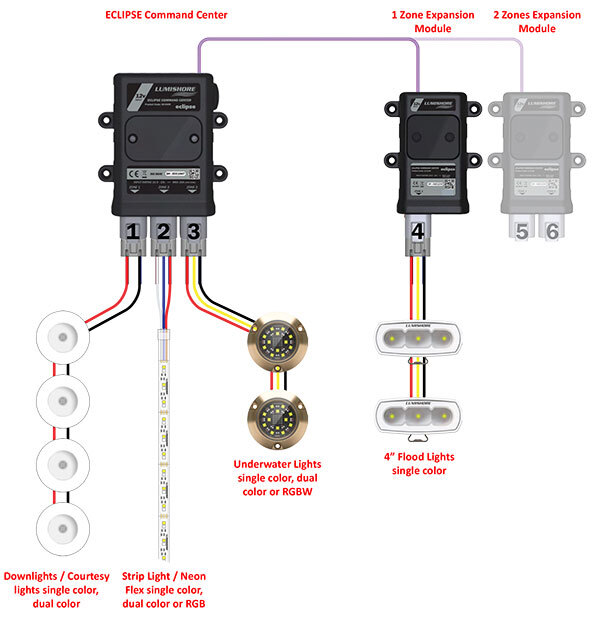

Wiring Example:

Eclipse Video:

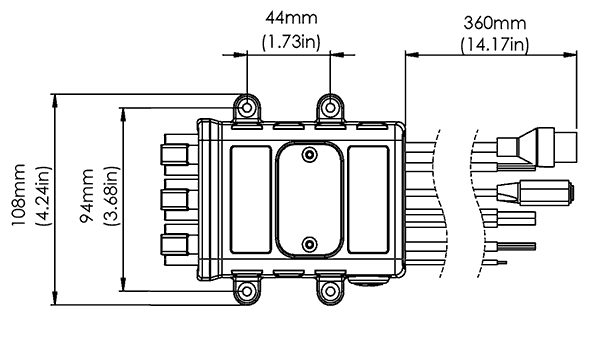

Eclipse Dimensions:

What's in the Box:
