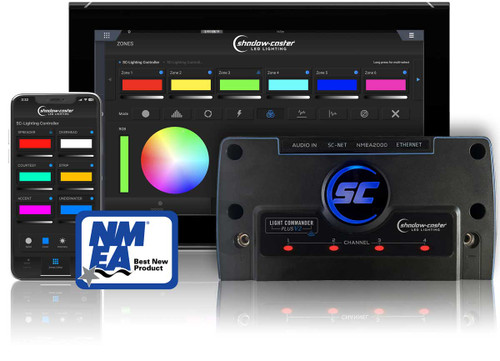

Shadow-Caster NMEA 2000 Lighting Controller

The SHADOW-CASTER Light Commander NMEA 2000 is a cutting-edge marine LED lighting controller designed for seamless integration with NMEA 2000 networks. Control up to six lighting zones, including four RGB or RGBW zones, and customize lighting scenes with color-changing, fading, rotating, strobe, and music-sync effects. Built in a rugged IP67-rated housing with Deutsch-style connectors, this controller delivers reliable performance in any marine environment. Engineered to meet the latest NMEA 2000 lighting control standards, the Light Commander combines advanced technology, durability, and SHADOW-CASTER’s signature style to elevate your boat’s lighting experience.

Product Highlights:

• Connects directly to the NMEA 2000 backbone or MFD network port
• Provides global lighting control across your entire vessel
• Supports up to six independent lighting zones, expandable to 12 or 18 with additional SCM-LC-N2K modules
• Includes six instant-on switch inputs for direct light activation without MFD control
• Compatible with both RGB and RGBW lighting systems
• Offers optional wireless connectivity for mobile device control via the SCM-LC-PLUS-V2 module
• Proudly engineered and manufactured in Florida, USA

Technical Specs:

• P67-rated water-resistant housing with fully waterproof connections
• Deutsch-style connectors ensure clean, professional OEM-quality installations
• All-in-one design eliminates the need for a separate MFD communication bridge
• Digitally fused overcurrent protection on four channels, rated at 15 amps each
• Illuminated logo and zone indicator LEDs provide clear function and status feedback
• Integrated 3.5mm audio input and built-in microphone enable music sync lighting effects

SCM-LC-N2K-PLUS Video:

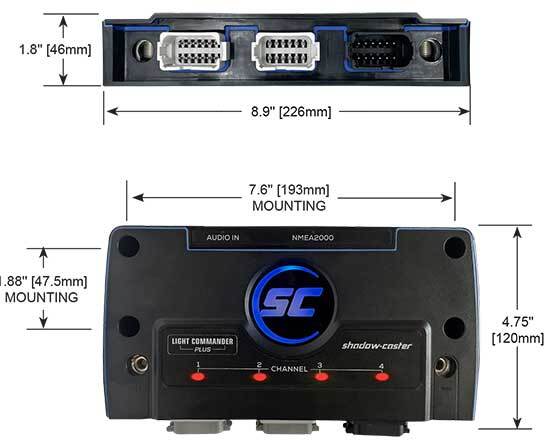

SCM-LC-N2K-PLUS Dimensions:

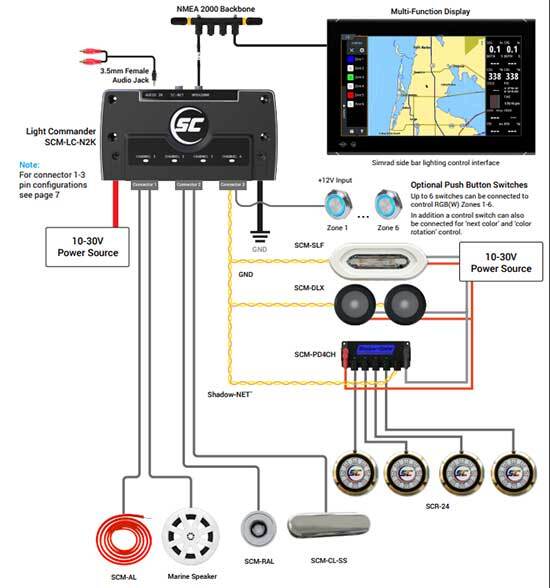

SCM-LC-N2K-PLUS Typical Wiring Diagram:

What's in the Box:

• (1) SCM-LC-N2K-PLUS-V2
