Dual Output Push Button Marine Switch - Stainless Steel

Built for demanding marine and harsh-environment applications, this 19mm stainless steel dual-color switch features dual output for flexible signaling and visibility. Its rugged stainless steel construction offers excellent corrosion resistance, making it a strong choice for boats, industrial equipment, and wet or exposed locations.

Product Highlights:

• Works with 9-32V
• Dual Output - Control Anchor Light and Port/Starboard lights separately
• IP68 Fully Waterproof
• Lifetime Warranty

Technical Specs:

• 5a per channel
• 3-Color Backlit Ring (Blue=Off, Red=Channel 1, Green = Channel 2)

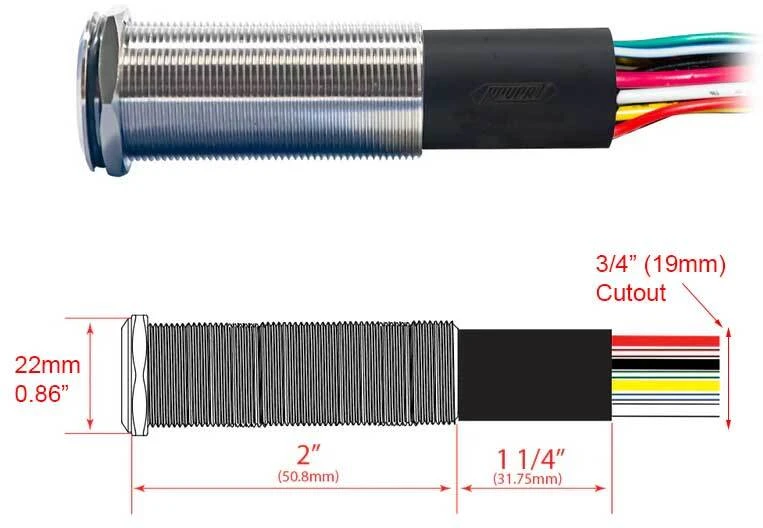

• 21mm Diameter Button
• 19mm Cutout Required
• 316 Stainless Steel Housing
• Comes with 36" of 14 AWG Marine Grade Wire
• How to Operate: Push Once for Channel 1 & 2 On, Push Twice for Channel 2 Only

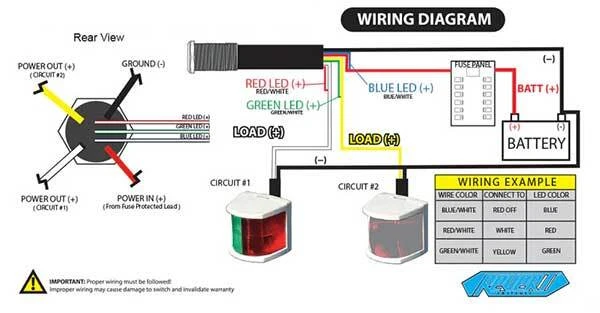

Diagram:

What's in the Box:

• (1) Switch
• (1) O-Ring
• (1) Locking Nut
