Lumishore Supra TIX804  Underwater Led Light

Illuminate your yacht with the powerful Lumishore TIX804 SUPRA thru-hull underwater light. This dual-color marine LED produces an incredible 13,500 fixture lumens with an ultra-wide 110° beam angle, creating a stunning halo effect around your vessel. Switch effortlessly between brilliant white and vibrant blue, fade colors, adjust brightness, or strobe at two speeds.

The TIX804 features an internal LED array (36 x 10W white, 48 x 3W blue) with integrated driver for simplified installation and convenient servicing from inside the hull . Compatible with SUPRA i-Connect Hub & Switch or control directly from your MFD with the optional SUPRA Bridge Module . Built with marine-grade aluminum bronze housing, this light is suitable for transom, side, and bottom mounting on 12/24V DC systems.

Product Highlights:

• Dual Color (White/Blue)
• 13,500 Lumens
• 3-Year Warranty

Technical Specs:

• 12-24v DC
• 106W / 8.8 Amps @ 12v DC
• IP68 Waterproof Rating
• 110° Wide Beam Angle
• Marine Aluminum Bronze
• Control the TIX804 with the the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module

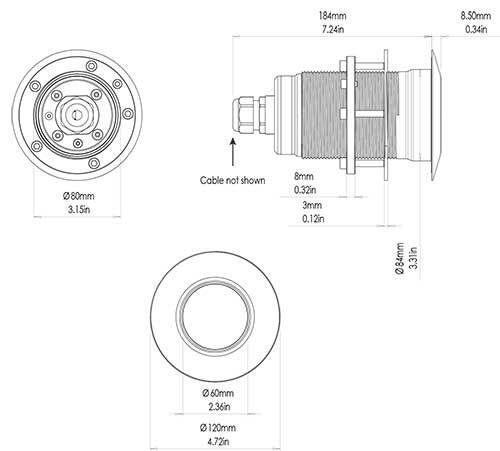

TIX804 Dimensions:

TIX804 Wiring Example:

What's in the Box:
